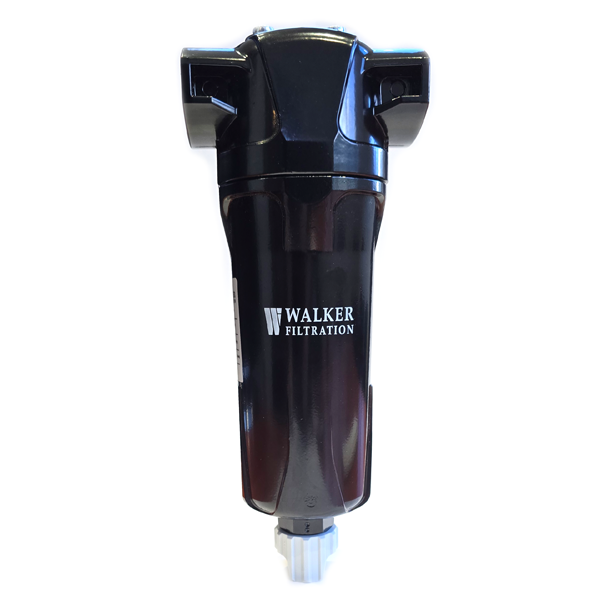

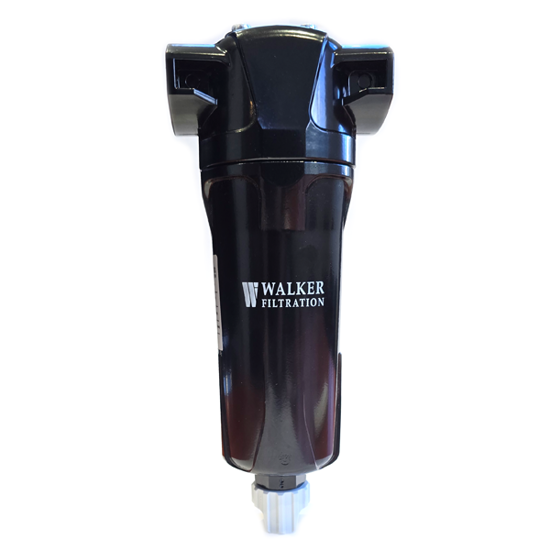

ALPHA 3/4" WATER SEPARATOR
3/4" Female BSP Thread Industrial Cyclone Filter with Auto Drain. 125 cfm flow rate.
Integrating into Walker Filtration?s compressed air filtration range, the New Alpha Water Separator combines proven Alpha centrifugal technology with a new forward thinking housing design to deliver market leading water removal efficiencies ? eliminating 99% bulk water with continuously low differential pressure.
The custom engineered centrifugal module features unique vanes to eliminate points of low efficiency, and a vortex arrestor to stop re-entrainment - ensuring minimal operating pressure loss and maintaining excellent liquid removal, even at low velocities.
No replacement components are required, making Walker Filtration?s Water Separators a viable and cost effective solution for removing bulk water from compressed air.
Energy Saving Water Separators operate with consistently low differential pressure reducing both energy consumption and operating costs.
* Flexible Installation Modular design and accessible fixings enable simple close coupling assembly.
* Cost Effective No replacement components required.
* NEW Externally Accessible Drain Valve Drain valve can be removed externally on larger models.
* Product Safety in Mind Guaranteed safe housing closure with rotational safety stop.
* Corrosion Protection Internal and external electrophoretic painting followed by a tough exterior polyester powder coating.
