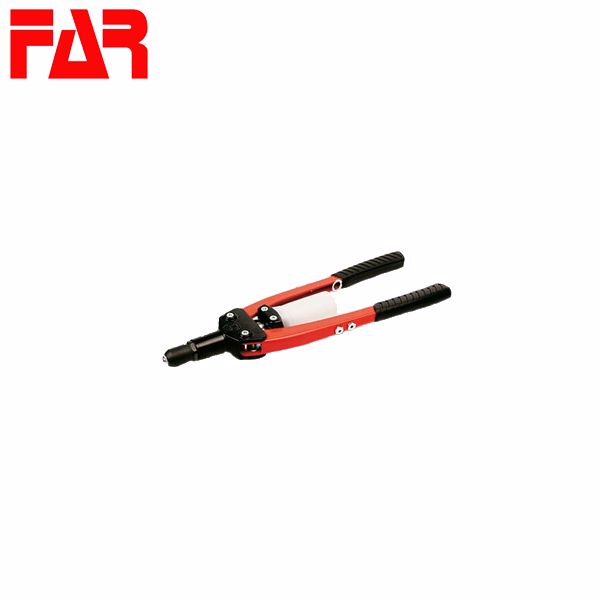

HAND RIVETER

Brand: Far

SKU: K25

Download brochure

HAND RIVETER

Industrial Hand Riveting Tool for Blind Rivets 2.4mm - 7.8mm is supplied with 5 nose pieces.

Standard rivets Ø 7.8mm only in aluminium.
The riveting tool is also suitable for X/S Trifar high performance rivets, by assembling the nozzle part no. 71345652.

Features:
* Integrated mandrel collector
* Ergonomic grips designed for comfortable and safe operation
* Lever and gear design reduces physical force required to set rivets

Compared to the previous model (K20), it defers for a remarkable reduction of the strength applied to the levers, reduced sizes and weight and the sheared nail recovery.

Made in Italy - ensures you get a quality product to last!

Attachments

K25 Spare Parts List

Products specifications

Capacity	Standard Rivets: Ø 2.4 mm, 3 mm, 3.2 mm , 3.4 mm, 4 mm, 4.8 mm, 6.0 mm, 6.4 mm, 7.8 mm Multistage Rivets: Ø 3.2 mm, 4 mm, 4.8 mm X/S-Trifar: Ø 5.2 mm Standard rivets Ø 7.8 mm only in aluminium.
Overall Length	420 mm
Weight	1.5 kg
