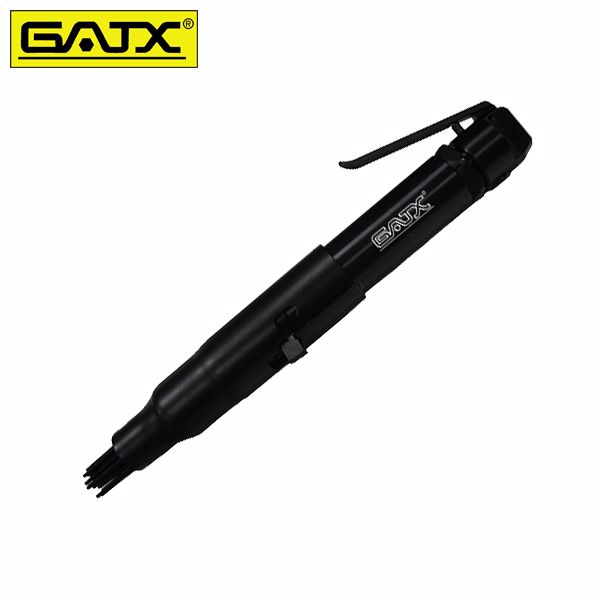

NEEDLE SCALER - STRAIGHT

Brand: Gatx

SKU: GP-0316

Download brochure

NEEDLE SCALER - STRAIGHT

Industrial straight needle scaler has proven itself in the harshest mining environments and heavy manufacturing industry for many years.

Made completely from quality all steel components, it has many imitations but nothing lasts like this particular tool.

Features 19 needles to a set with an adjustable front head tension gives the operator flexibility in changing needle tension without having to pull the tool apart. Needle changes are very quick and easy and quality needles are available as spare part (Part# 3mmx180mm).

Attachments

GP-0316 Spare Parts List

Products specifications

Blows Per Min. (bpm)	4,400
Free Speed	4,400 rpm
Needle Size (std)	Ø 3 x 180 mm
No. of Needles in a Set	19 pieces
Overall Length	410 mm
Piston Stroke	38 mm
Weight	2.8 kg
