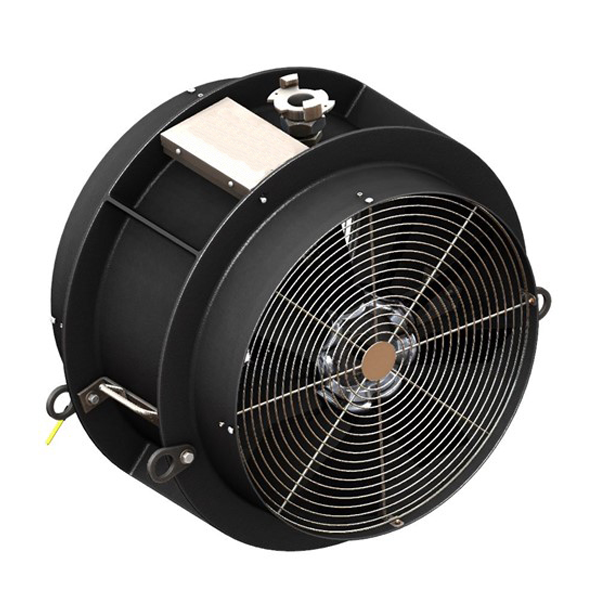

TYPHOON 600MM V10 AIR VENT FAN (FRAS)
The Typhoon V10 600mm pneumatic air fan is a robust air fan for use in underground coal mines, hard rock mines and construction sites. The fan can be used for ventilation purposes to either draw polluted air or gases away from an area or to ventilate with clean air.
The outer housing is constructed from Fire Resistant Anti-static (FRAS) fiberglass. The guards and housing of the air motor are of a steel construction. The nine blade impeller is made from Anti Static Glass Reinforced Polyamide (PAGAS) material which is suitable for explosive environments.
The fan can be used as a stand alone unit or with ducting fitted over the outer housing. Two hanging points are provided so that the fan can easily be mounted with chain or straps from a roof.
The air inlet is a standard 2" minsup snap coupling style. The air stream requires light lubrication as detailed on the specifications layout page.
The fan comes standard with a motor silencer box and earth cable.
APPLICATION:
* Hard rock mines
* Coal mines
* Tunnels and shafts
* Sewers and manholes
* Refineries
* Tanks and ship?s holds
FEATURES:
* FRAS cowling
* Air motor powered
* 9 blade impeller
* Variable speed
* Variable pitch blades
Technical Specifications:
Fan Diameter: 600mm
Housing Diameter: 618mm
Housing length: 520mm
Weight: 48kg
Delivered Air @ 600kPa: 8.1m3/sec
Air Consumption @ 8.1m3/sec: 145 L/sec
Sound Power @ 8.1m3/sec: 98 dB(A)
