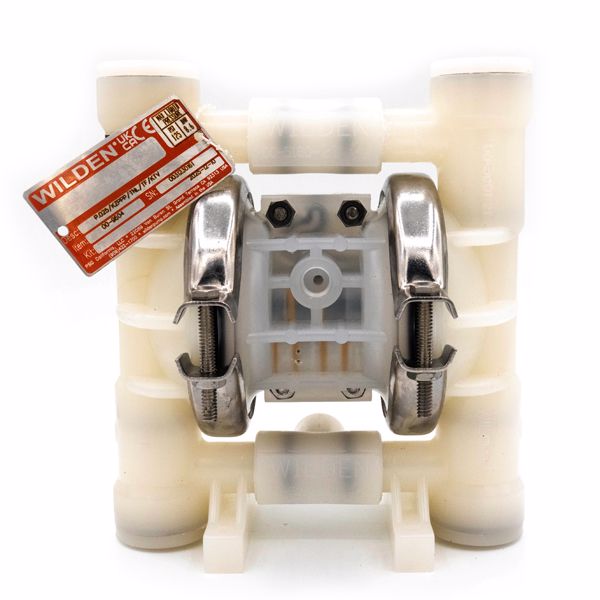

WILDEN 1/4" DIAPHRAGM PUMP
Wilden P.025/PPPPP/WFS/TF/PWF Air Operated Double Diaphragm Plastic Pump - Polypropylene - PTFE Diaphragm - 1/4" x 1/4" - P0.25 Original. - Pro-Flo® w/ Santoprene®
**Features**
Designed for demanding utilitarian type applications that require a robust design
Ensure reliability without sacrificing ease of maintenance
Multitude of elastomer options, including Teflon® (PTFE), to meet your abrasion, temperature and chemical compatibility
Self-priming pumping action
Indefinite dry running ability
Non-metallic construction
Large internal clearances
Compressed air driven
Variable speed
Application: Suitable for use in chemical, ceramic, plating and finishing, oil and gas, waste water treatment and paint applications. Ideal for flooded suction, suction lift, submerged operation and waste applications.
Ideal for flooded suction, suction lift, submerged operation and waste applications
AODD Pump, Polypropylene, 1/4" Pro-Flo®, Clamped, Threaded, w/ Santoprene®
Item: 00-9612
Description: P.025/PPPPP/WFS/TF/PWF
Key Specifications
Discharge Orientation: CENTER SWIVEL
Inlet Orientation: CENTER SWIVEL
Default Max Diameter Solids (in.): 0.02
Discharge Size (in.): 0.25
Max Flow Rate (gpm): 4.8
Inlet Size (in.): 0.25
Max Diameter Solids (in.): 0.02
WILDEN Pump Description: P.025/PPPPP/WFS/TF/PWF
Type: Air Operated Double Diaphragm
Item Number Pump: 00-9612
Port Size: 1/4"
Air Kit: NAK
Wet Kit: NME
Air Distribution System: Pro-Flo®
Pump Construction: Polypropylene
Diaphragms: Wil-Flex
Valve/ Balls: Teflon
Valve Seats: PP with Wil-Flex O-Ring
Outer Piston: Polypropylene
Air Chamber: Polypropylene
Center Block: Polypropylene
Air Valve: Polypropylene
Capacity GPM: 4
Capacity Liters/min: 18
Pump Weight Lbs: 3,4
Pump Weight Kilo: 1
