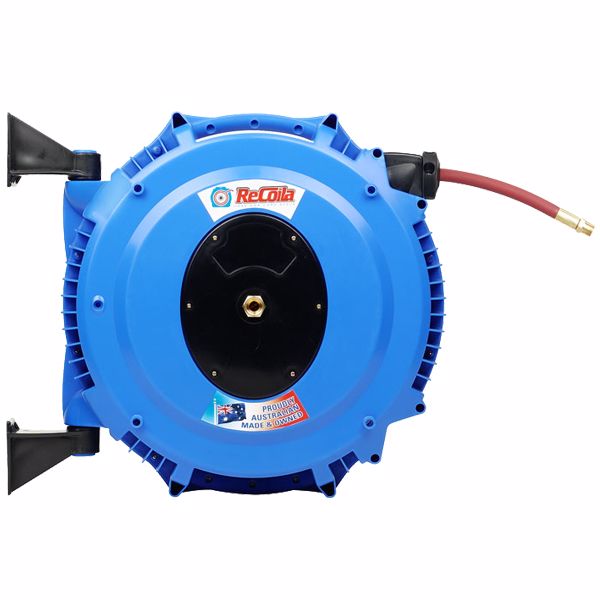

RETRACTABLE HOSE REEL 10MMIDX20M

Brand: Recoila
SKU: RE-AW1020

RETRACTABLE HOSE REEL 10MMIDX20M

Air & Water Retractable Hose Reel fitted with 10mm id hose x 20m length of quality hose. Perfect for general workshop applications such as compressed air or cold water washdown.
Inlet fitting is 3/8" Female BSP and outlet on hose end is 3/8" Male BSP.

Also available is a model fitted with EPDM rubber hose, ideal for air applications in fabrication areas where welding spatter adversely affects standard hoses.

Rugged, lightweight polypropylene reels!

GEN III FEATURES
* Highest quality finished edge spring steel strip
* Full flow swivels and fluid paths witpositive crimp hose fitting
* All position positive latching system
* Tough, impact, corrosion resistant and UV stabilized polypropylene, with anti static and flame retardantproperties
* Unique ratchet tensioning system
* Wall mounting system allows the reel to swivel from side to side
* Replaceable mouth guard and hose stop
* Large side covers for easy access in servicing and maintenance routines
* Unique locking pin port for added safety when servicing the reel
* Easy mounting template included

AN INDUSTRIAL LEGEND ReCoila's GEN III engineered composite polypropylene reels are best-sellers for a reason - they're tough, reliable, functional and durable.
With nearly twenty different application-specific models each with a range of hose sizes and lengths, there's sure to be a reel to suit your application.
The GEN III Series is ideal for a wide range of industrial applications such as air, water, grease, oil, chemicals, gases and more.

Products specifications
Dimension A 490 mm
Dimension B 239 mm
Dimension C 599 mm
Finish Composite
Hose Length 20 m
Inlet Fitting 3/8" Female BSP
Inside Diameter (id) 10 mm
Outlet Fitting 3/8" Male BSP
Pressure 240 psi
Weight 12 kg
